LED Boom Barrier
Model No- TP 1003
An LED boom barrier refers to a boom barrier equipped with LED lights. These barriers integrate LED technology primarily for visibility and communication purposes. Here’s a breakdown of what an LED boom barrier typically includes and its functionalities:
LED Lights: LED lights are embedded into the boom barrier structure. These lights serve various purposes such as:
- Visibility: LEDs enhance visibility, especially in low-light conditions or during nighttime, making the barrier more noticeable to drivers and pedestrians.
- Status Indication: LEDs can indicate the status of the barrier (open or closed) through different colors or patterns. For example, green LEDs might indicate the barrier is open, while red LEDs indicate it is closed.
- Warning Signals: LEDs can also be used to provide warning signals, such as flashing lights to alert approaching vehicles that the barrier is about to close.
Features
- Enhanced Safety: The use of LEDs improves safety by making the barrier more visible and predictable to drivers and pedestrians, thereby reducing the risk of accidents or collisions.
- Energy Efficiency: LED technology is known for its energy efficiency compared to traditional lighting options, making it suitable for continuous operation without significant power consumption.
- Integration with Control Systems: LED boom barriers are often integrated with advanced control systems that allow for remote operation, status monitoring, and synchronization with other traffic or access control systems.
- Durability: LEDs are durable and long-lasting, requiring minimal maintenance compared to conventional lighting solutions.
- Applications: LED boom barriers are used in various applications including:
- Parking Facilities: Managing entry and exit points in parking lots or garages.
- Toll Booths: Controlling vehicle access and managing traffic flow at toll plazas.
- Industrial and Commercial Facilities: Securing entrances to factories, warehouses, and restricted areas within buildings.
- Residential Complexes: Controlling vehicle access to gated communities and apartment complexes.
Technical Specification
Opening / closing times | 3-6 Sec |
Power consumption | 150 W |

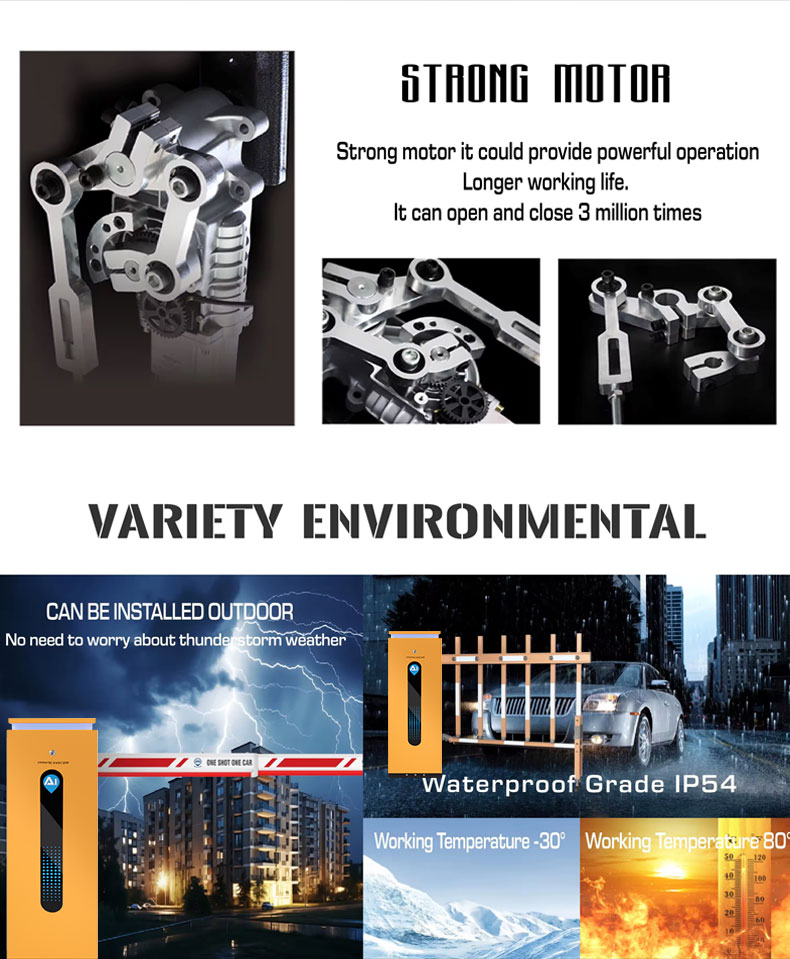

Drive technology | BLDC Drive Mechanism |
Housing dimensions (W x D x H) | 990*310*250 MM |
Weight | 35 KG |

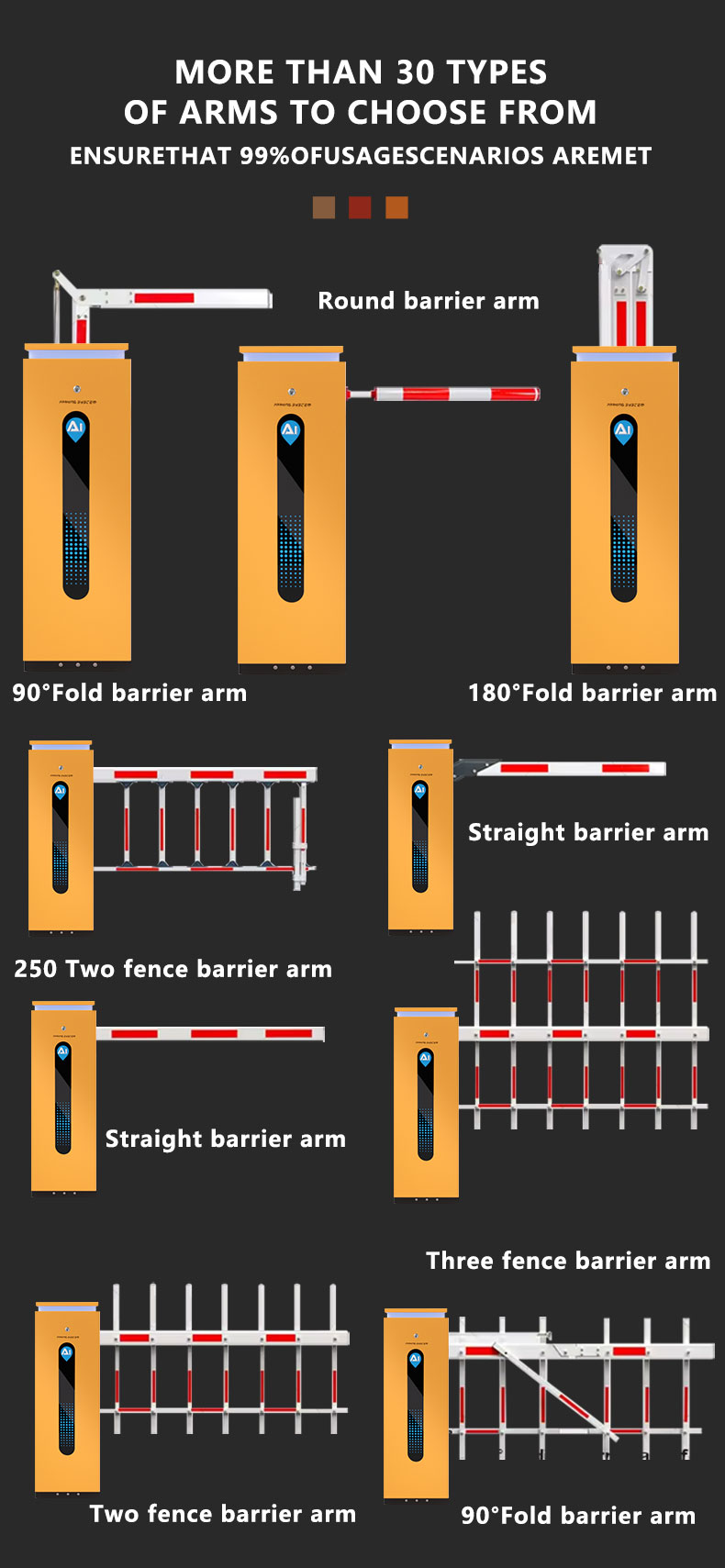

Arm Length | Upto 6M |
Safety Feature | Photocell, Magnetic Loop |
Color | Customization |
