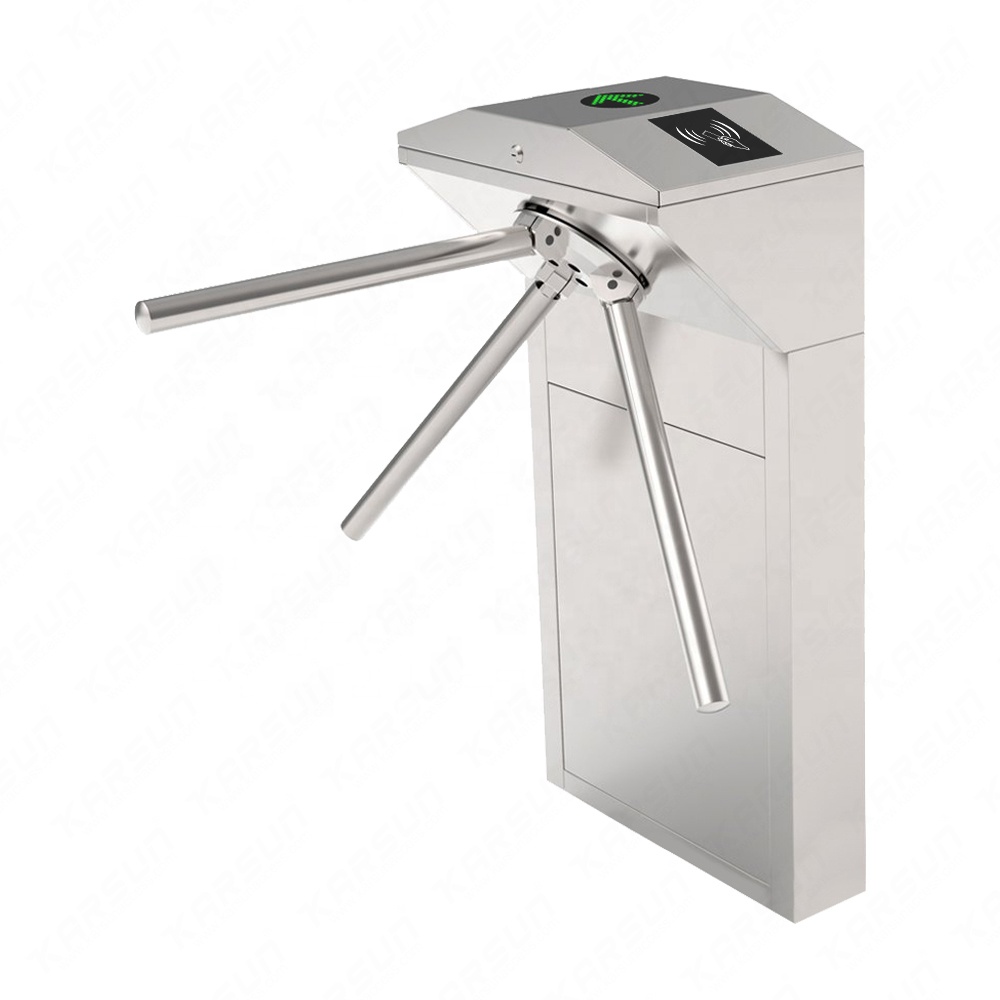

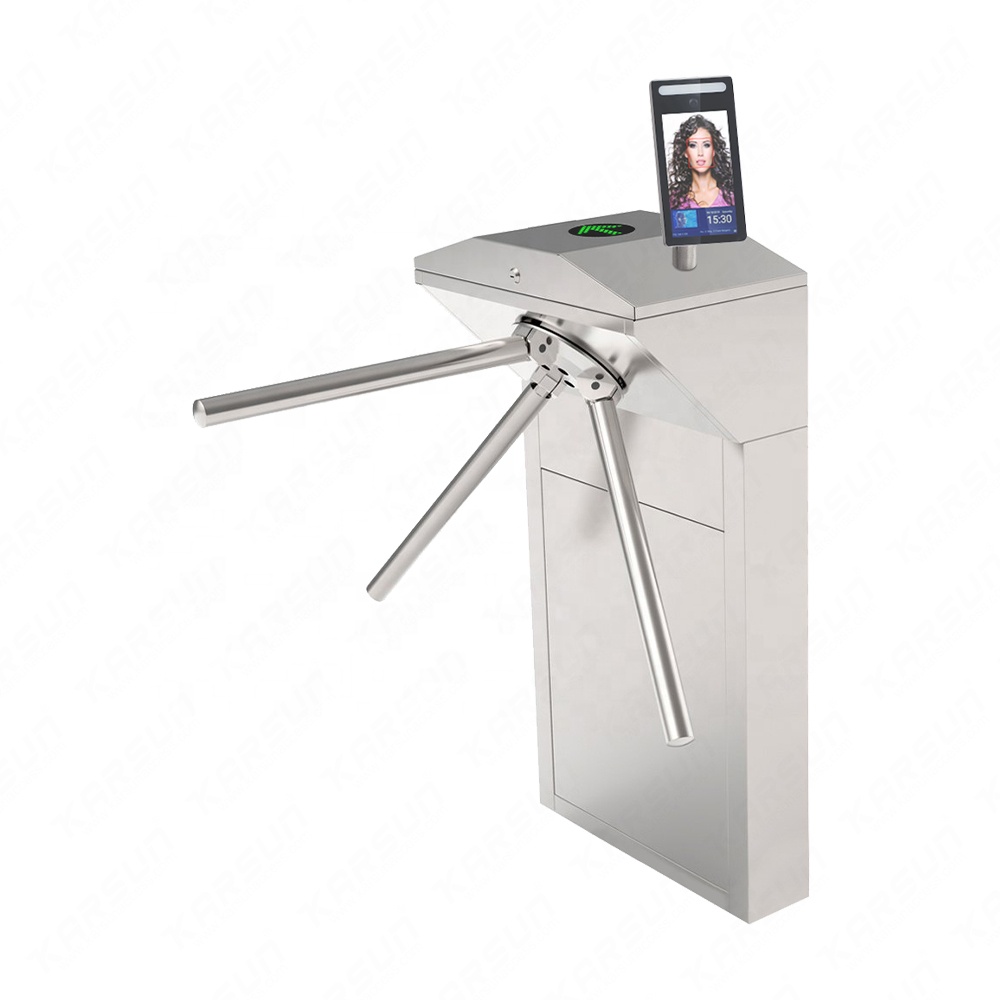

Face RFID Access Control Tripod Turnstile
Model No- TP3103
A tripod turnstile is another type of pedestrian access control gate, similar to flap barriers, but with distinct design and operational characteristics. Here’s an overview of tripod turnstiles:
Design and Functionality:
- Three-arm Design: Tripod turnstiles are named for their three rotating arms that are typically set in a triangular formation.
- Rotating Mechanism: Each arm rotates horizontally, allowing passage when unlocked and blocking the passage when locked.
Operation:
- Access Control: Integrated with access control systems such as RFID card readers, barcode scanners, or biometric systems.
- Authentication:Users must present a valid credential to unlock the turnstile arms and gain access.
- Automatic Reset:After a person passes through, the arms automatically rotate back to their original position to prepare for the next user.
Types:
- Mechanical Tripod Turnstiles:Operate purely on mechanical principles, relying on physical rotation and locking mechanisms.
- Motorized Tripod Turnstiles:Enhanced versions that use motors for smoother operation and faster throughput.
Advantages:
- Security: Controls access effectively, preventing unauthorized entry.
- Cost-Effective: Generally more affordable compared to some other types of turnstiles.
- Reliability: Simple mechanical design results in robust and reliable operation.
Model | TP3101 |
Size | 420*330*980mm |
Material | SS 304 |
Pass Width | 550mm |
Passage direction | Single directional/Bi-directional |
Pass rate | 30-35 persons/minute |
Operating time | 0.2 seconds |
Power input | AC100-240V,50/60HZ |
Working temperature | -40℃~+70℃ |
Communication interface | RS485, Dry contact |
Mechanism | Solenoid lock |
MCBF | 5,000,000 Cycles |
Application | Bus, Station,factories,Toilets, Library,etc |
